Phase 1 of Forest Inventory Visualization

The first phase of the landscape level inventory visualization project involved learning to use Visual Nature Studio (VNS) in conjunction with digital elevation models, satellite imagery and shape files to produce 3D vegetation maps. In this learning stage we focused on tying values in the data files to those in the VNS images. The data in these files was highly generalized and should not be considered in any way factually reliable. In producing these images, land areas were broken into three classifications: tree, and urban and field (please note that both field and urban areas both appear as vacant fields). Architectual structures are absent. Forest types are generalized into 10-acre square units of hardwood and softwood. The tree age classifications were generalized into three classes (1-10 years, 11-20 years, and > 21) and later into five classes (0-5, 6-10, 11-15, 16-20, and > 21).  Images used for illustrating the individual tree objects were in many cases not those of actual southern species.

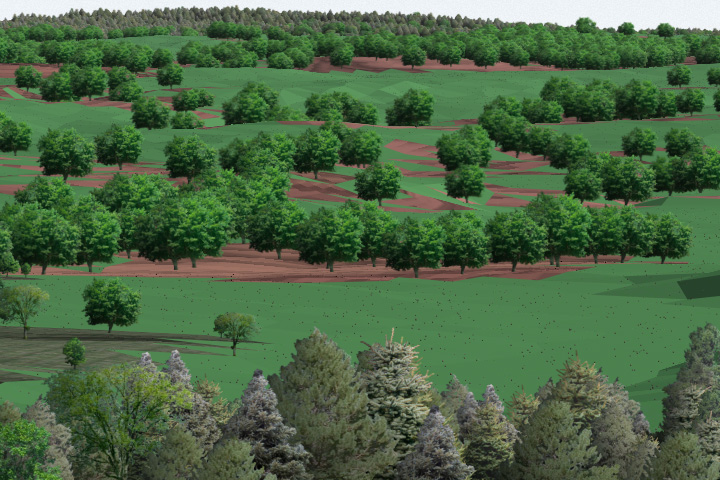

The first stage: Learned VNS






Dimension: 720x480 jpg



The second stage:  Researched how to use VNS to get to our goals, which were to show the tree species and divide them into 3 separate age classes.




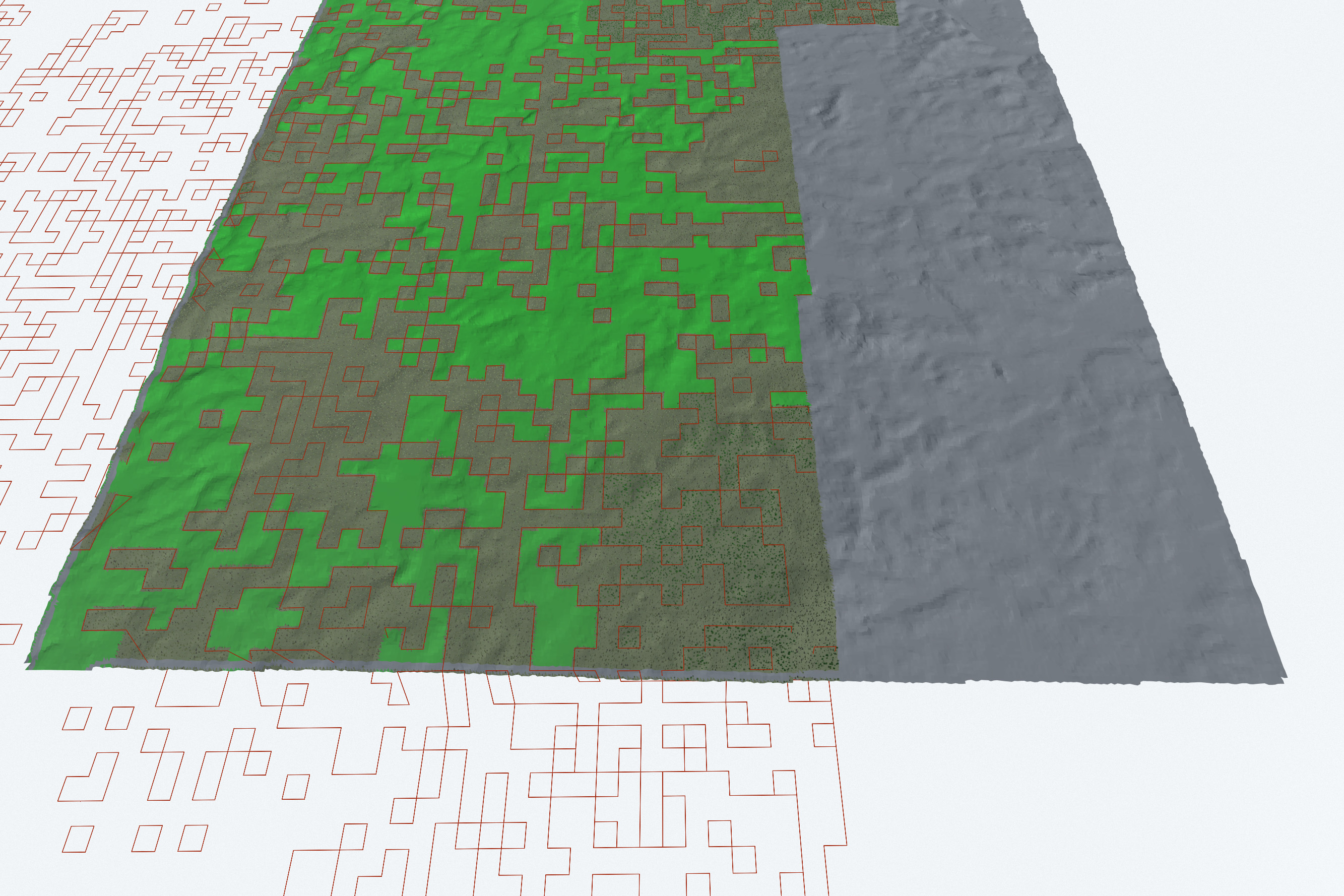

Dimension: 720x480 jpg

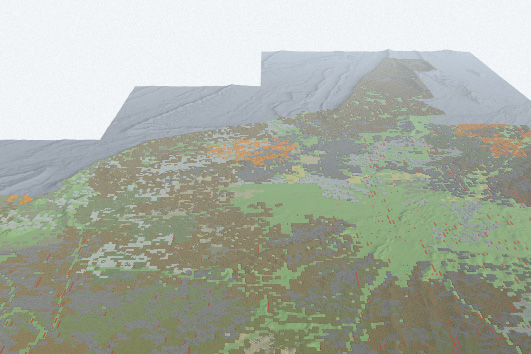

Floyd County


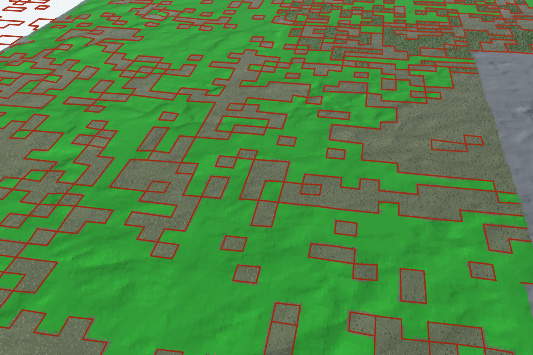

Dimension: 533x355 jpg

Floyd County


Dimension: 2667x1778 jpg

 Floyd County

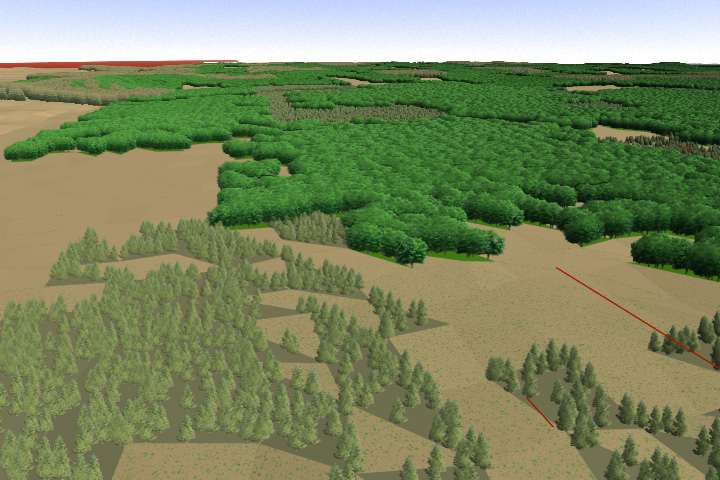

The third stage:  Generated images using fixed densities. That is, the density was defined in VNS, not in the shape file itself.


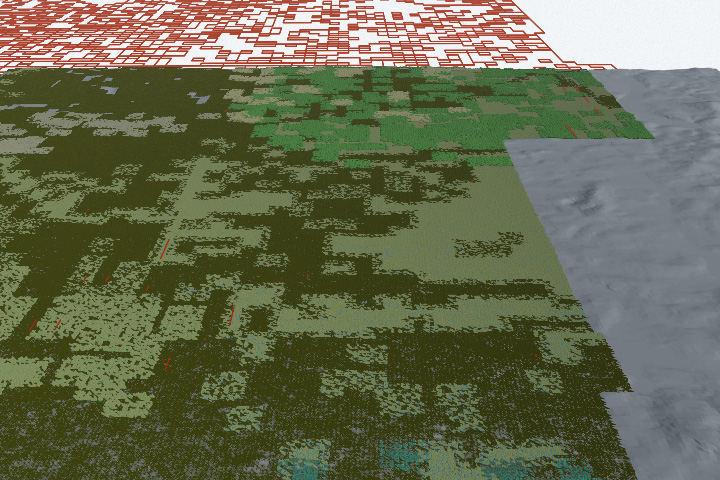

Dimension: 720x480 jpg

Floyd County


Dimension: 533x355 jpg

Floyd County


Dimension: 720x480 jpg

Floyd County


Dimension: 531x354 jpg

Floyd County

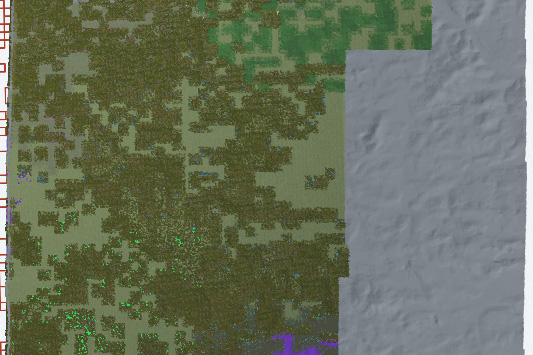

The fourth stage:  (11- 28) Generated images using the density value in the shape file.


Dimension: 720x480 jpg

Armuchee, GA

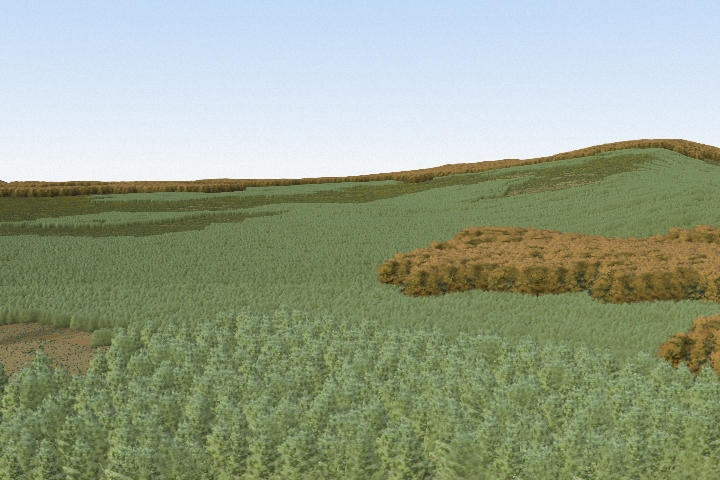

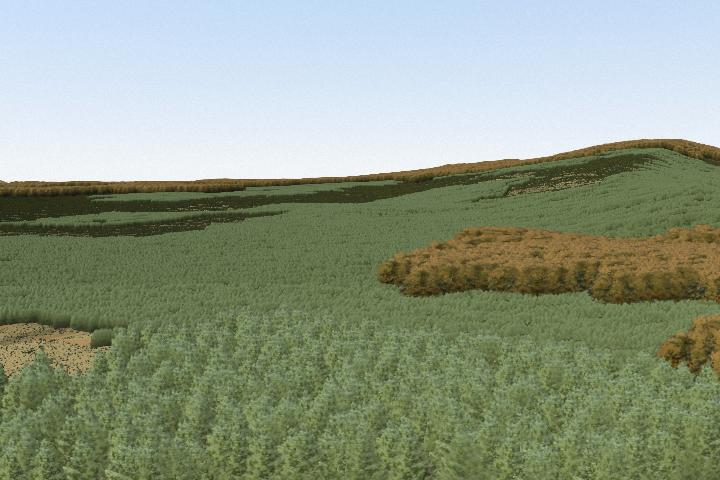

Armuchee_Max qulity_4-2.jpg (296217 bytes)

Dimension: 720x480 jpg

Armuchee, GA

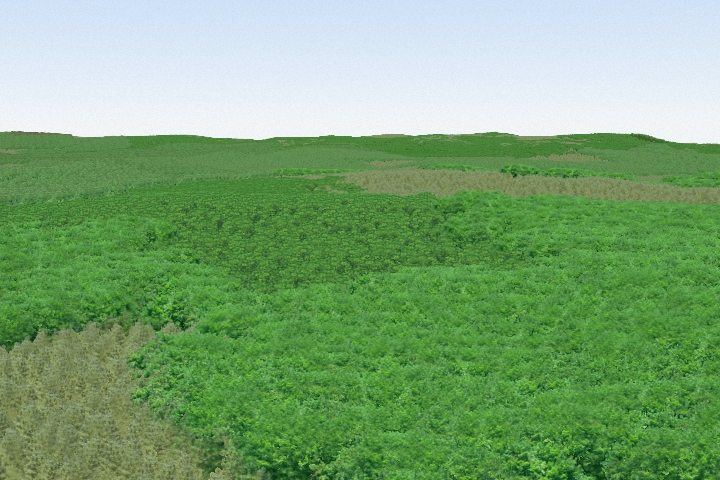

Cedartown_East_9am Max qulity2_4-2.jpg (324012 bytes)

Dimension: 720x480 jpg

Cedartown East, GA

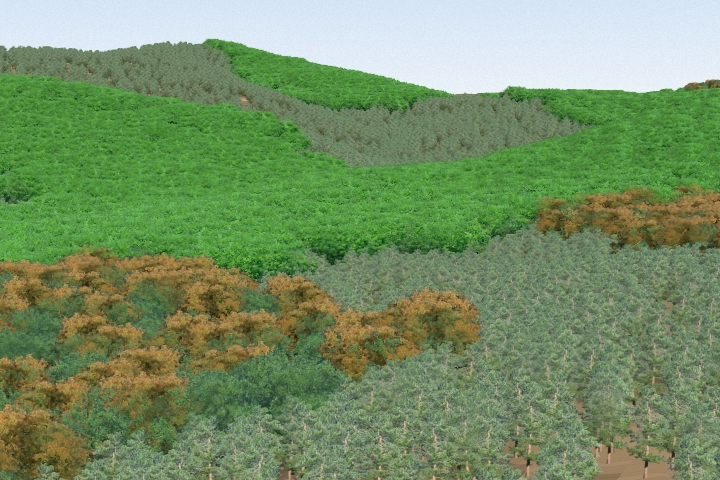

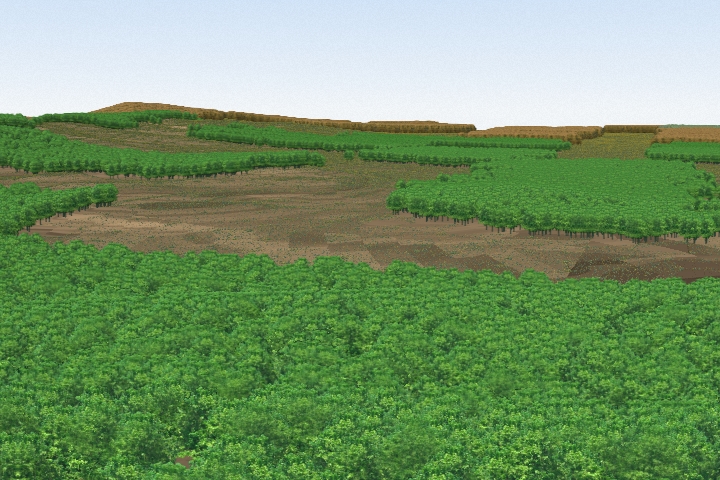

Chattoogavilley_Maxquility_close view_4-4.jpg (361707 bytes)

Dimension: 720x480 jpg

Chattoogavilley, GA

Indian Mountain_Maxquility_4-4.jpg (352405 bytes)

Dimension: 720x480 jpg

 Indian Mountain, GA

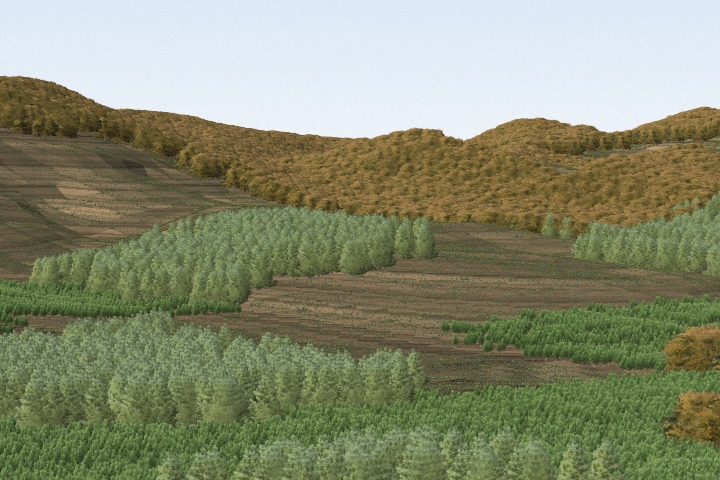

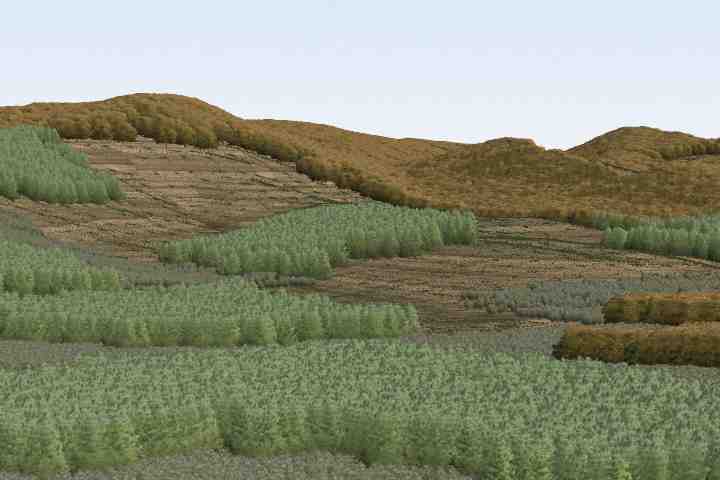

Livingston_330pm_max quility_4-4.jpg (327265 bytes)

Dimension: 720x480 jpg

Livingston, GA

Livingston_11am_max quility_4-4.jpg (24107 bytes)

Dimension: 720x480 jpg

Livingston, GA


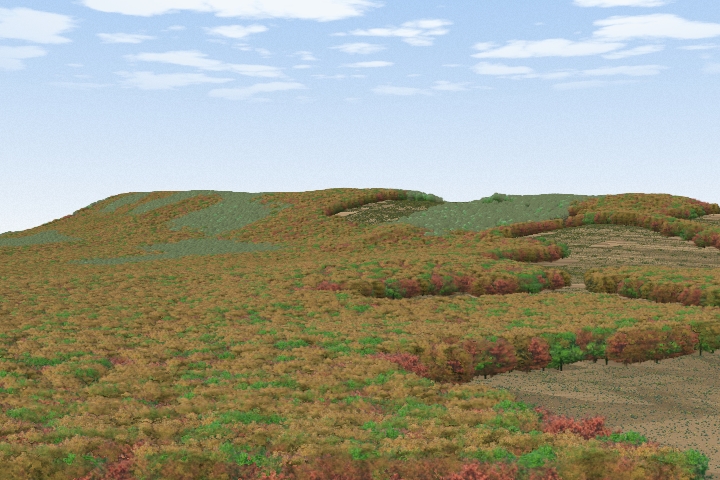

Dimension: 720x480 jpg

Plainville, GA

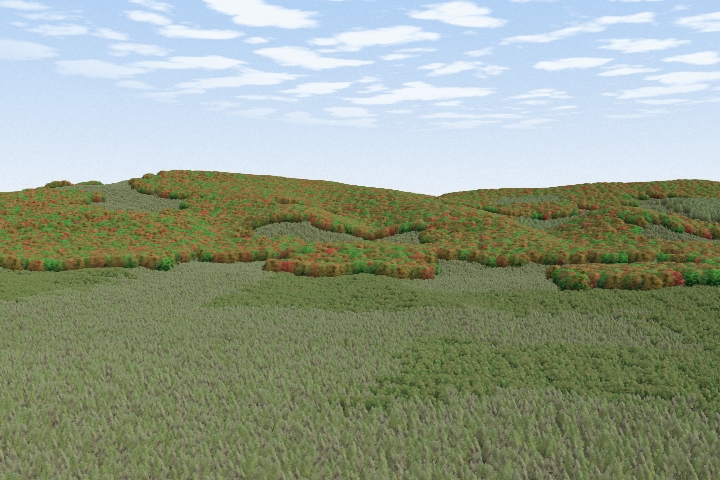

Rock Mountain_cloud_4-5.jpg (315376 bytes)

Dimension: 720x480 jpg

Rock Mountain, GA

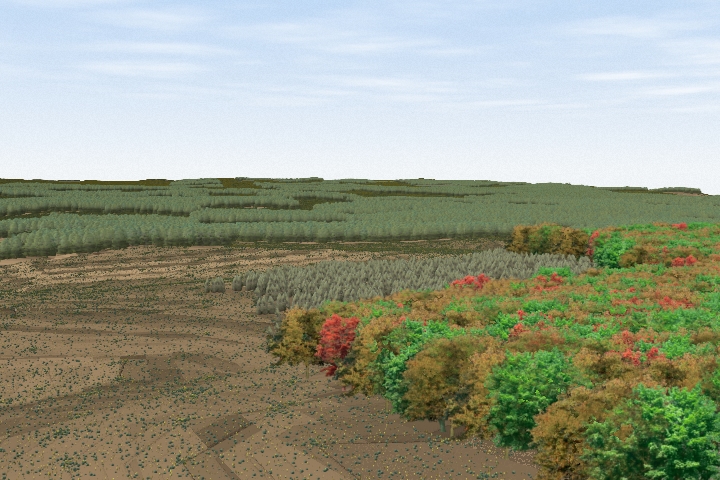

Rockmart North_4-5.jpg (322924 bytes)

Dimension: 720x480 jpg

 Rockmart North, GA

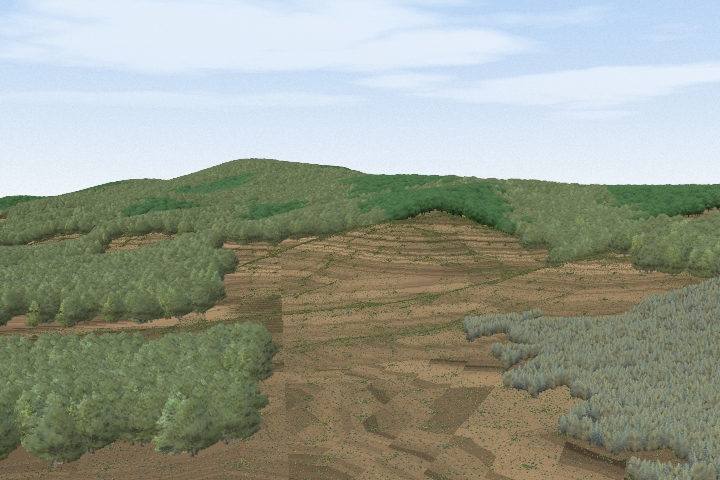

Rome North_4-6.jpg (288155 bytes)

Dimension: 720x480 jpg

Rome North, GA

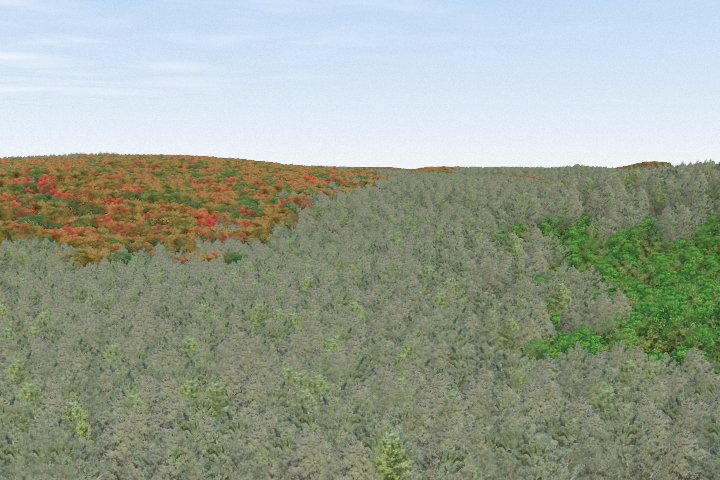

Rome South_4-6.jpg (313252 bytes)

Dimension: 720x480 jpg

Rome South, GA

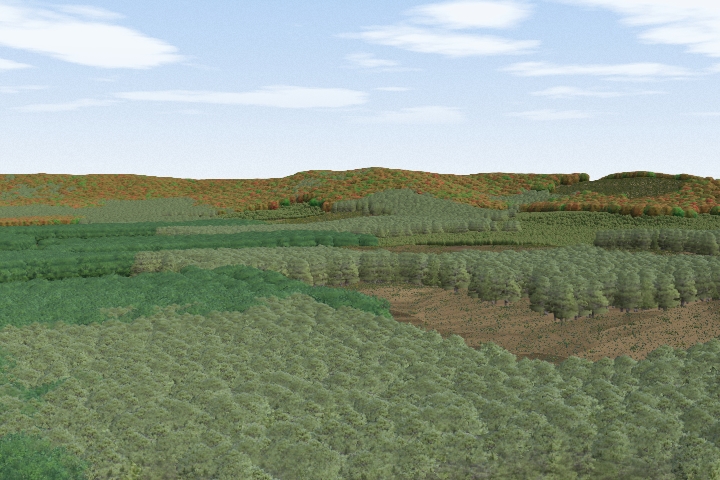

Dimension: 720x480 jpg

Shannon, GA

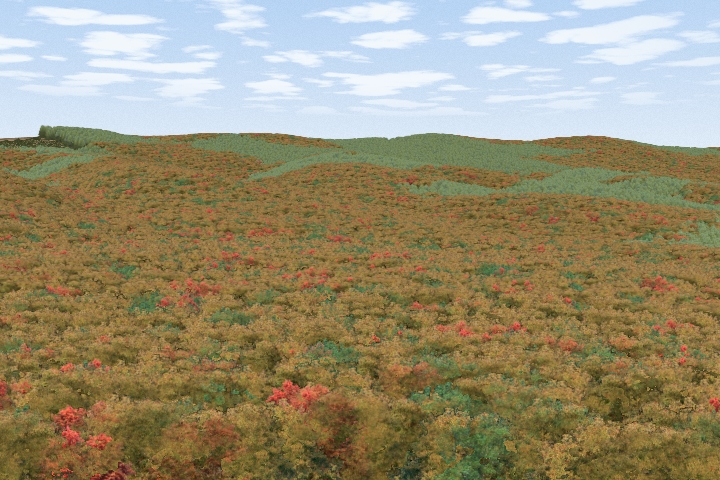

Dimension: 720x480 jpg

Subligna, GA


Dimension: 720x480 jpg

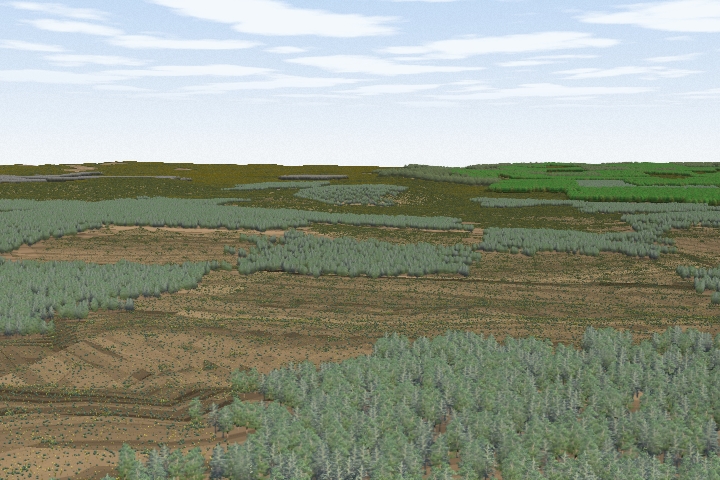

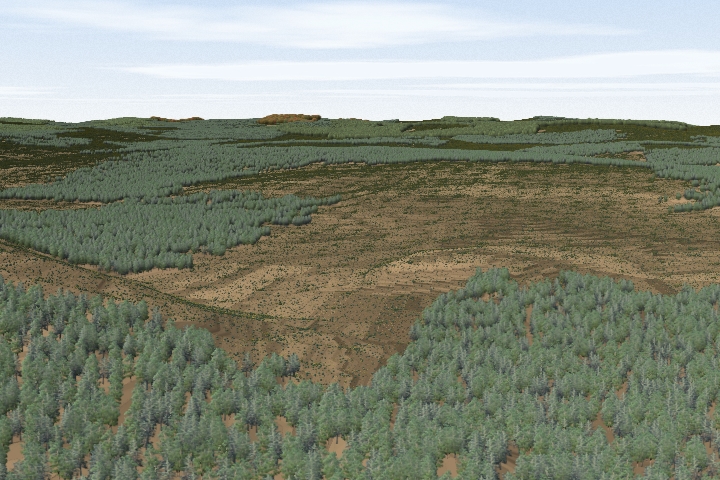

 Wax, GA


Dimension: 720x480 jpg

Wax, GA

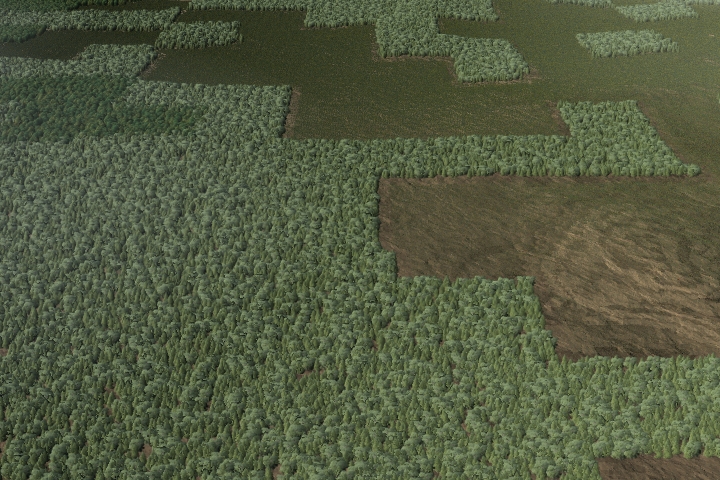

The fifth stage:  Located tree images to use in VNS. Adjusted the non-tree image components (ground color, clouds, light level, camera direction, strata lines, etc.) Used aerial photographs of the photos taken from airplane as examples of tree colors.


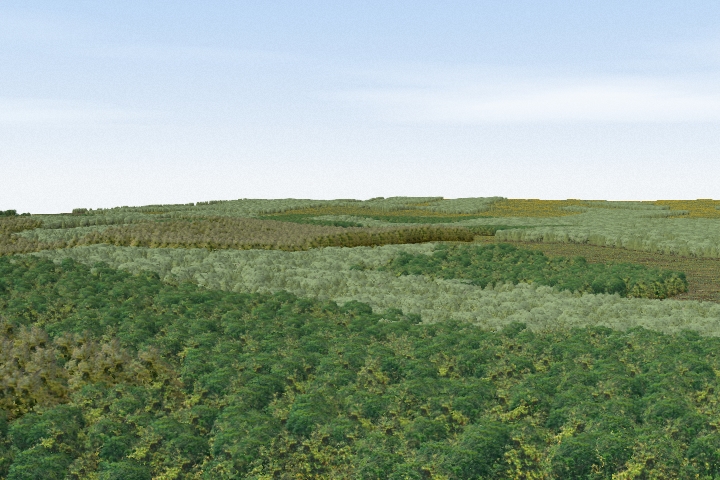

Dimension: 720x480 jpg

Cedartown East, GA


Dimension: 720x480 jpg

 Cedartown East, GA

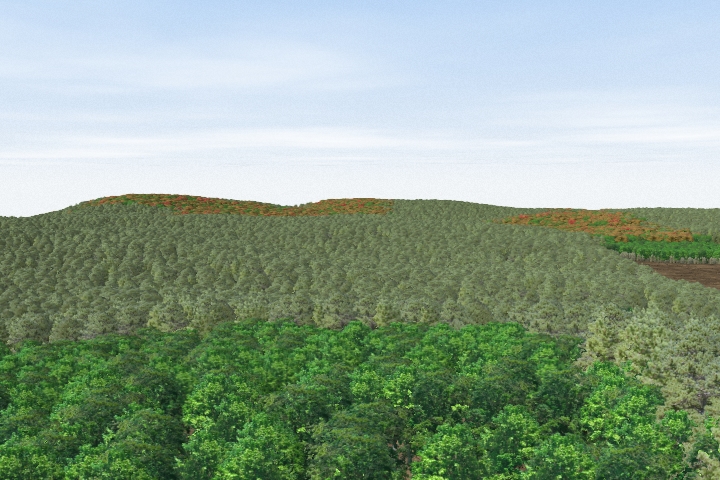

Cedartown West_4-14.jpg (315263 bytes)

Dimension: 720x480 jpg

 Cedartown West, GA

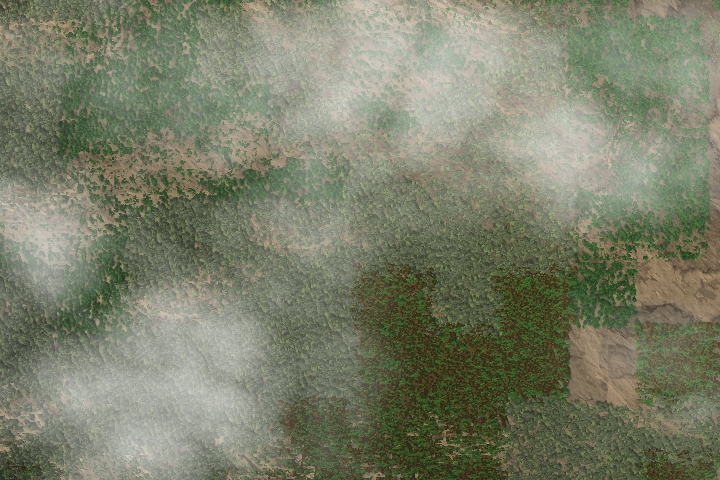

Cedartown West_overhead_4-14.jpg (371641 bytes)

Dimension: 720x480 jpg

Cedartown West, GA

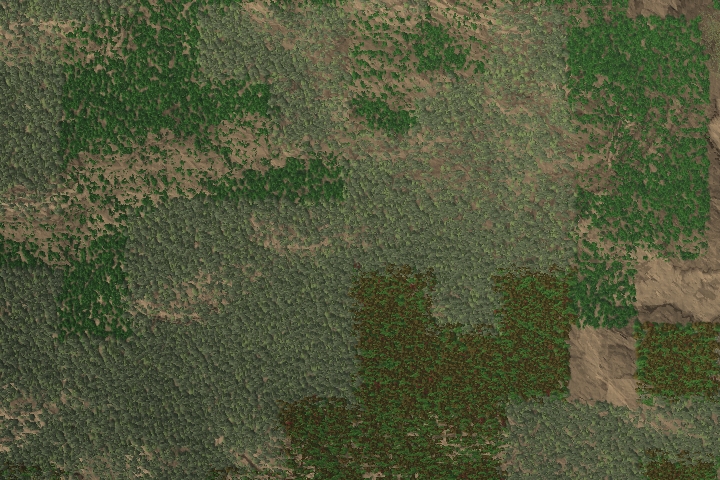

Cedartown West_overhead_nocloud_4-14.jpg (413838 bytes)

Dimension: 720x480 jpg

Cedartown West, GA


Dimension: 720x480 jpg

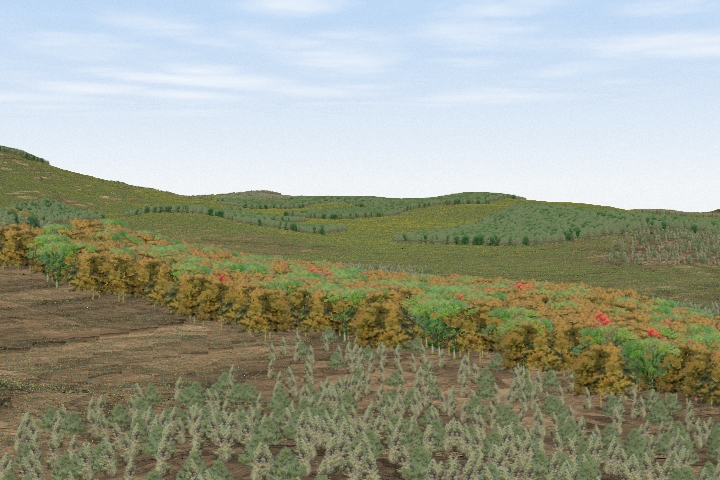

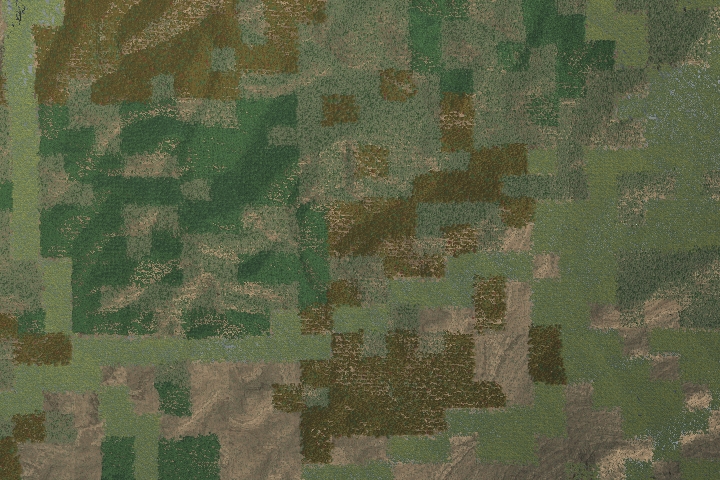

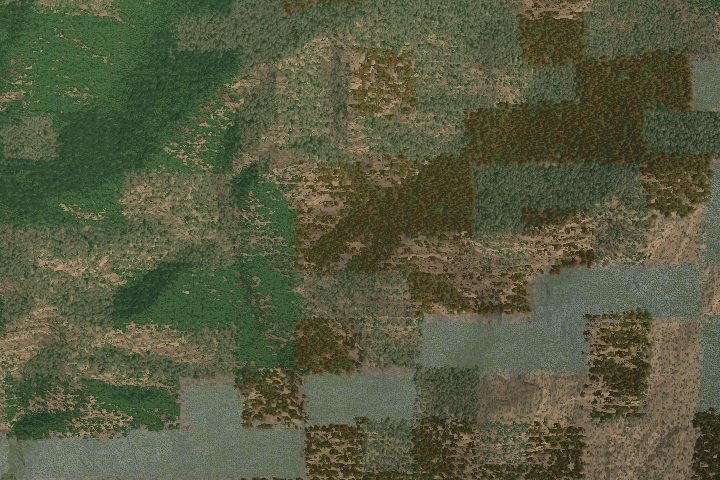

 Chattoogavilley, GA


Dimension: 720x480 jpg

 Chattoogavilley, GA


Dimension: 720x480 jpg

Chattoogavilley, GA

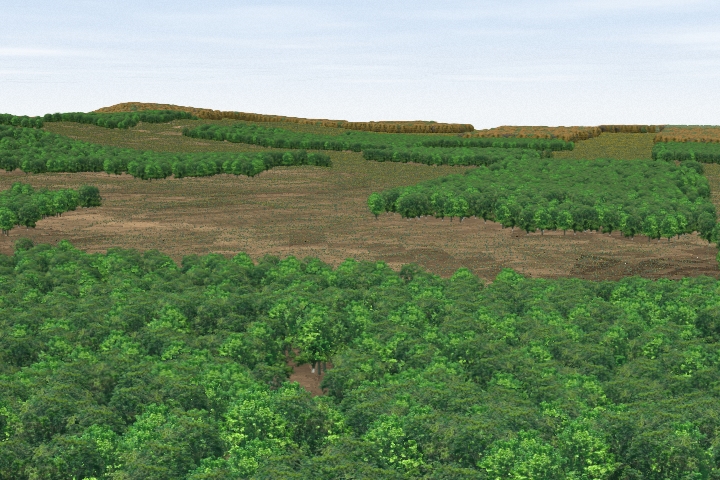

Indian Mountain_Maxquility2_4-14.jpg (359337 bytes)

Dimension: 720x480 jpg

Indian Mountain, GA

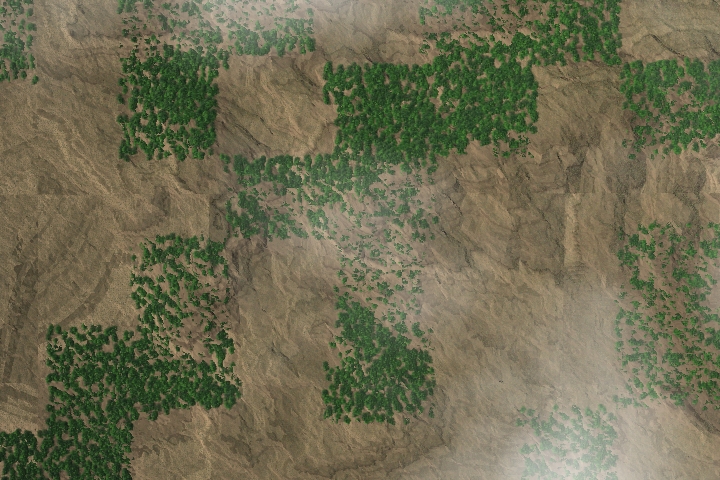

Indian Mountain_Overhead_4-14.jpg (367629 bytes)

Dimension: 720x480 jpg

 Indian Mountain, GA


Dimension: 720x480 jpg

Livingston, GA


Dimension: 720x480 jpg

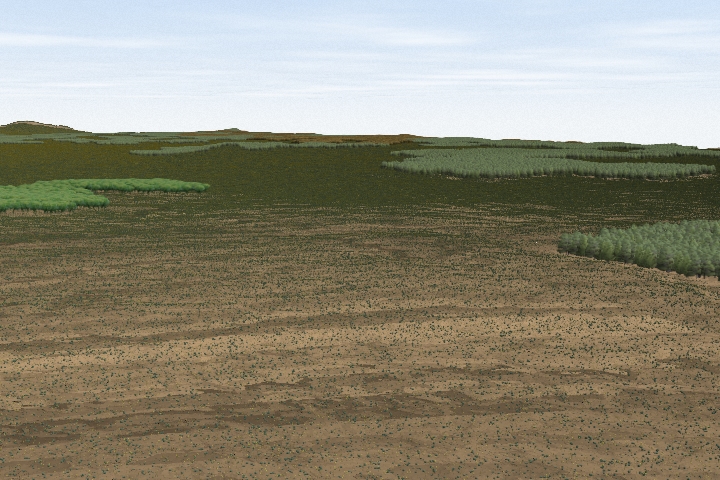

Melson, GA

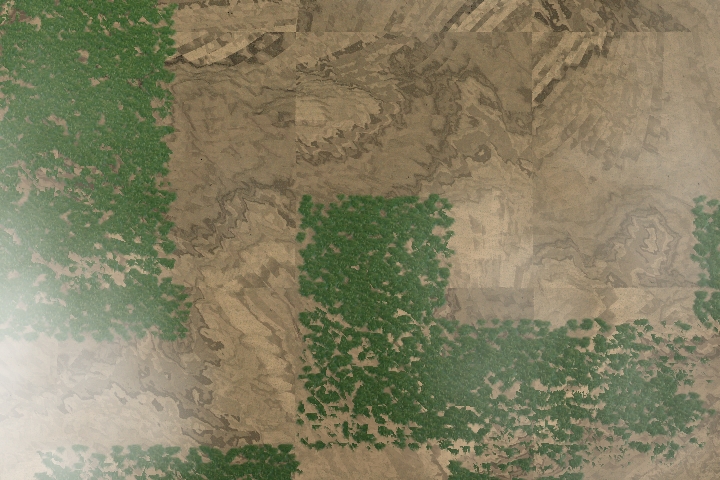

Melson_overhead 2_4-14.jpg (327278 bytes)

Dimension: 720x480 jpg

Melson, GA


Dimension: 720x480 jpg

Plainville, GA

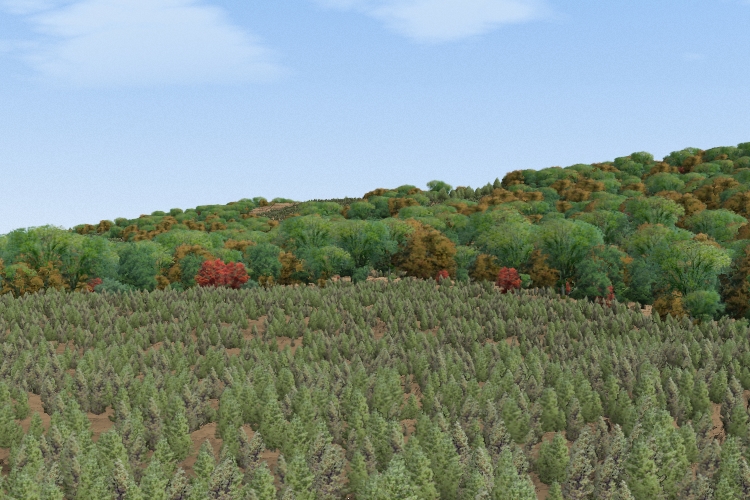

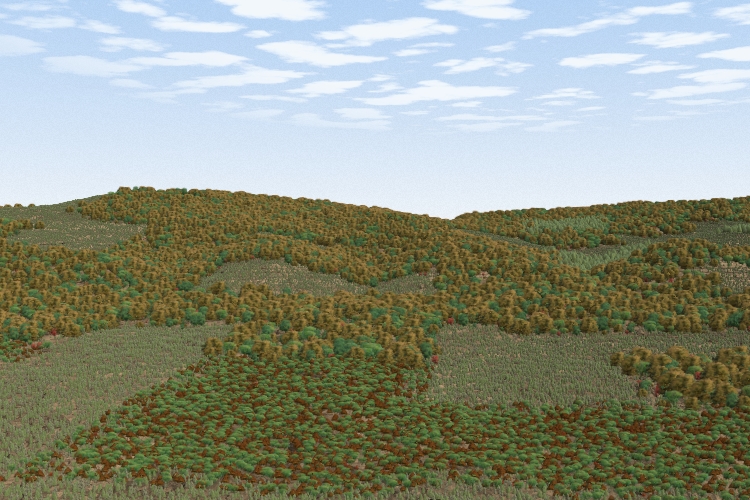

Rock Mountain_cloud2_4-18.jpg (366329 bytes)

Dimension: 750x500 jpg

 Rock Mountain, GA

Rock Mountain_cloud5_4-19.jpg (345654 bytes)

Dimension: 750x500 jpg

Rock Mountain, GA

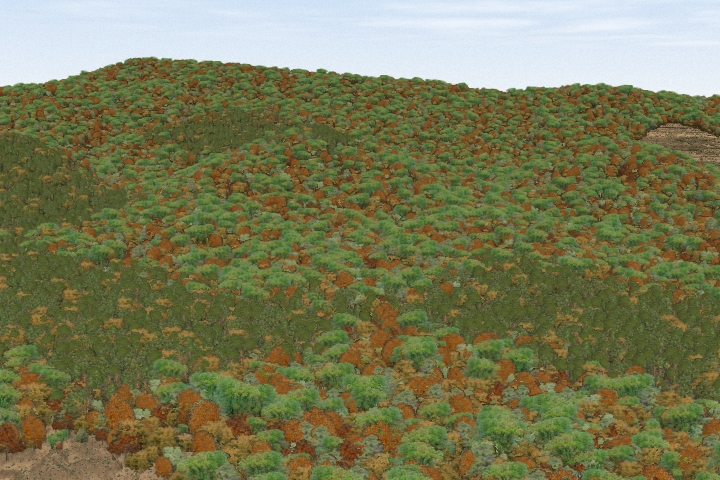

Rome South 5_4-23.jpg (370108 bytes)

Dimension: 720x480 jpg

Rome South, GA


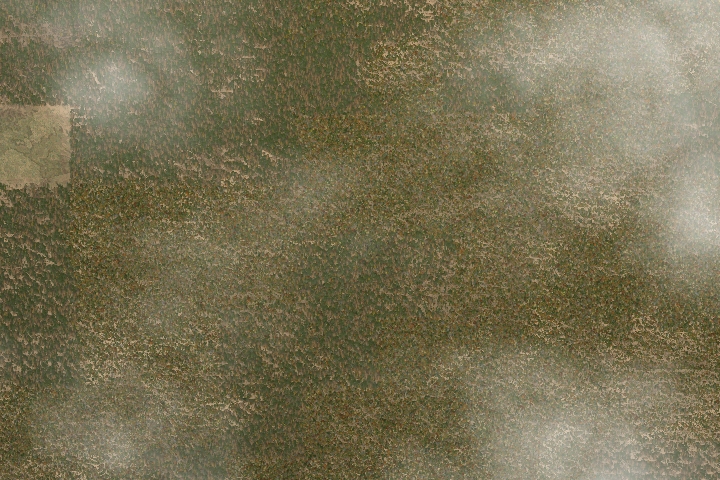

Dimension: 720x480 jpg

 Livingston, GA


Dimension: 720x480 jpg

 Livingston, GA


Dimension: 720x480 jpg

Livingston, GA


Dimension: 720x480 jpg

 Livingston, GA


Dimension: 720x480 jpg

Livingston, GA

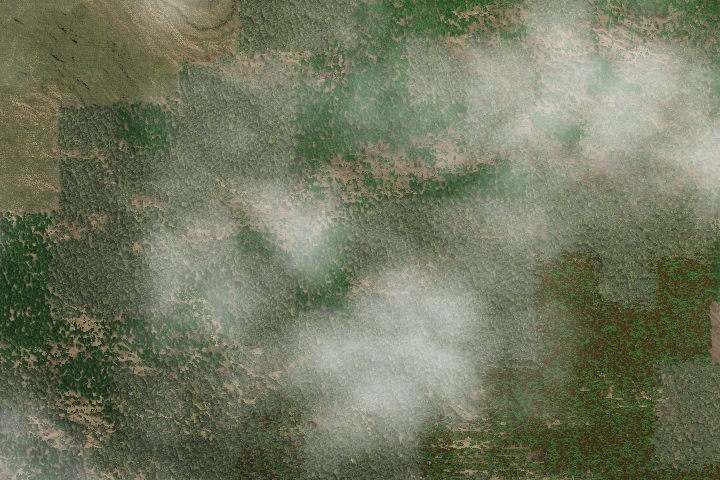

Cedartown West_overhead_cloud1_4-27.jpg (384710 bytes)

Dimension: 720x480 jpg

Cedartown West, GA

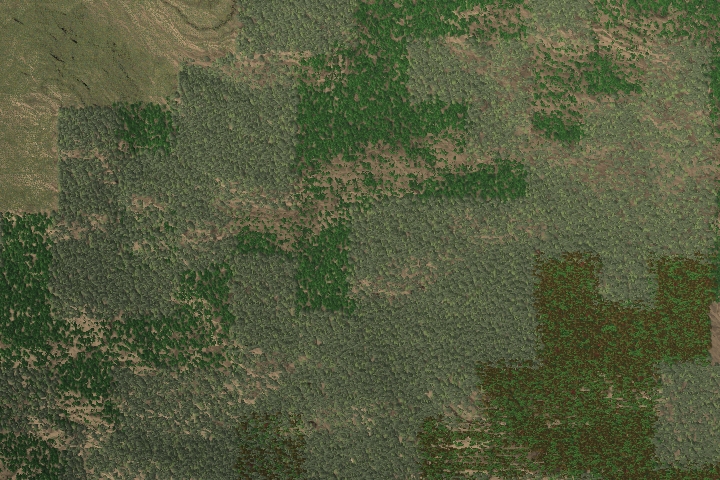

Cedartown West_overhead_nocloud_4-27.jpg (414335 bytes)

Dimension: 720x480 jpg

Cedartown West, GA

The sixth stage:  Generated images from different views and different altitudes, also adjusting tree colors.

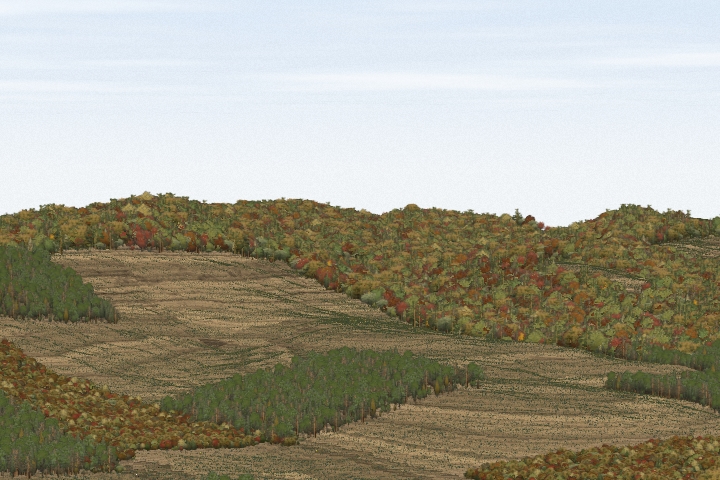

Livingston_450m_max quility_5-2.jpg (308937 bytes)

Dimension: 720x480 jpg

 Livingston, GA

Camera Distance: 450 meters

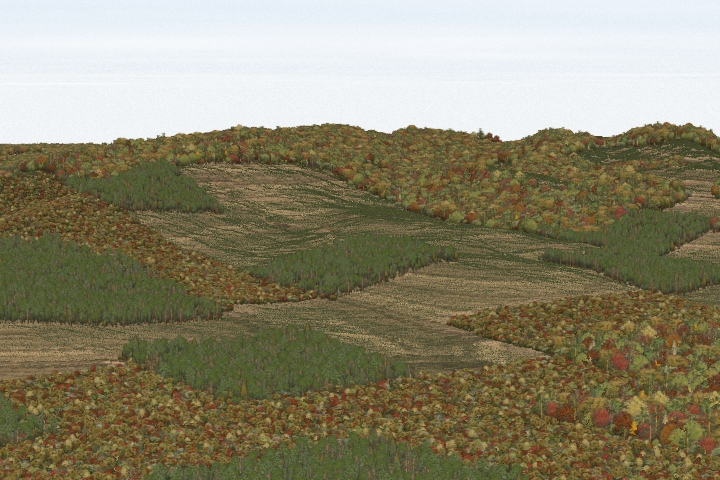

Livingston_500m_max quility_5-2.jpg (339257 bytes)

Dimension: 720x480 jpg

 Livingston, GA

Camera Distance: 500 meters

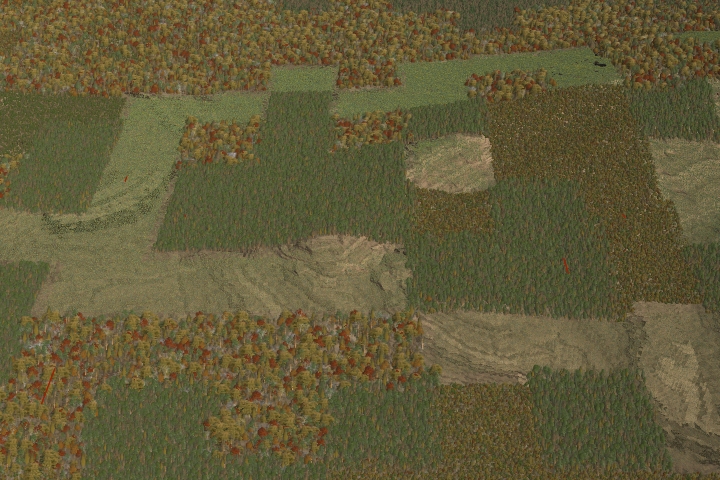

Livingston_1500m_Facing North_5-7.jpg (369387 bytes)

Dimension: 720x480 jpg

Livingston, GA

Camera Distance: 1500 meters

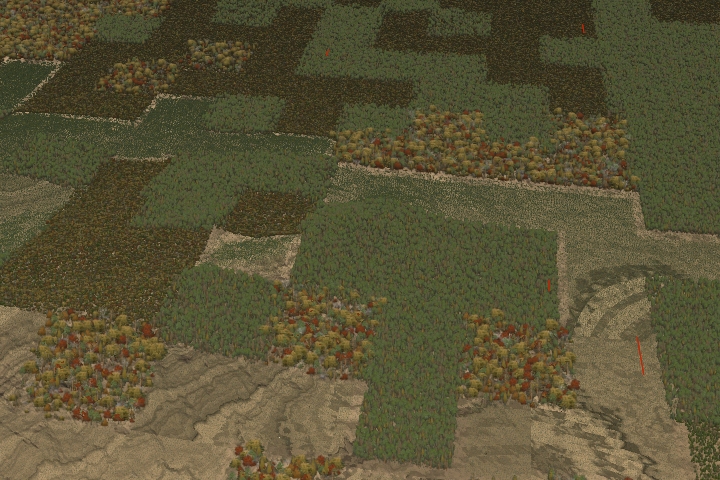

Livingston_1500m_Facing South_12pm_5-7.jpg (375462 bytes)

Dimension: 720x480 jpg

Livingston, GA

Camera Distance: 1500 meters

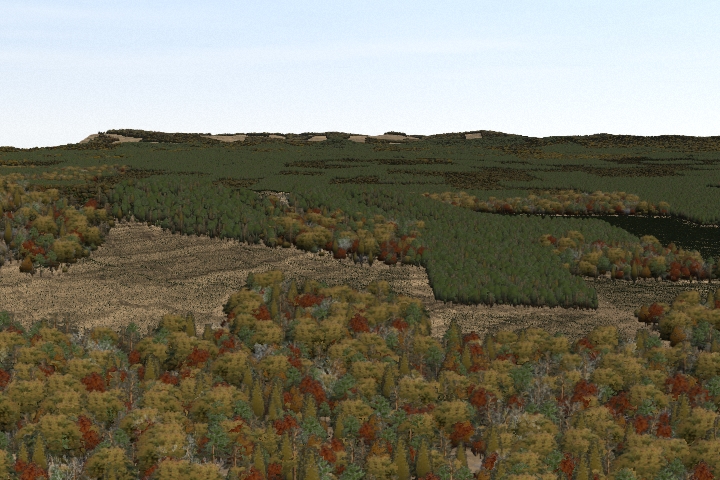

Livingston_400m_Facing South_1pm_5-7.jpg (323267 bytes)

Dimension: 720x480 jpg

Livingston, GA

Camera Distance: 400 meters

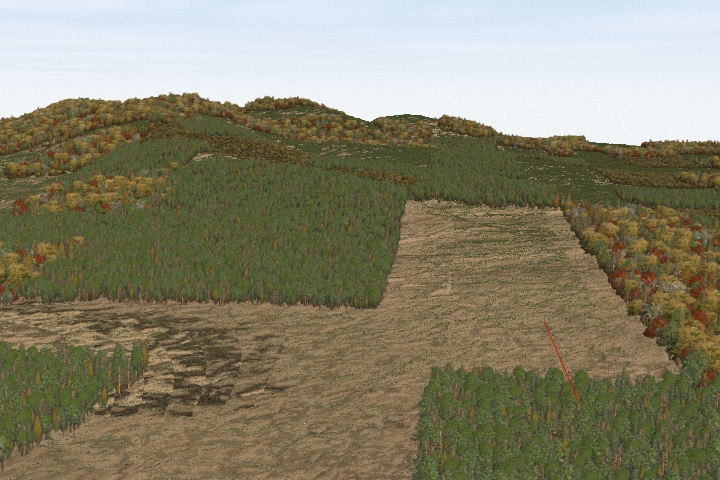

Livingston_400m_Facing East_1pm_5-7.jpg (336451 bytes)

Dimension: 720x480 jpg

 Livingston, GA

Camera Distance: 400 meters

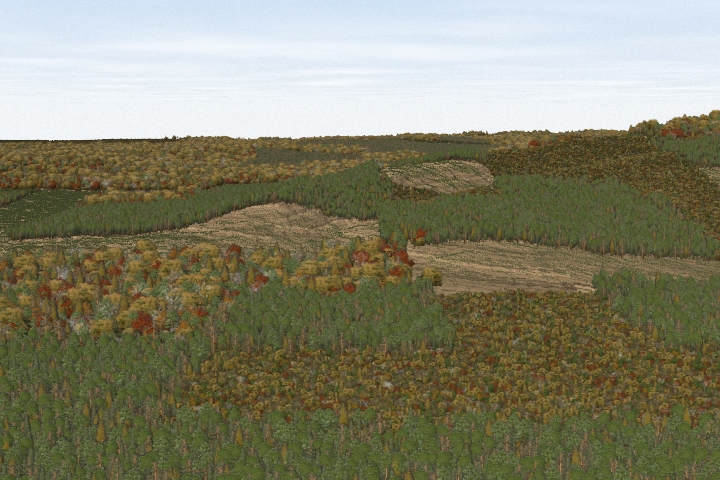

Livingston_400m_Facing North_1pm_5-7.jpg (331112 bytes)

Dimension: 720x480 jpg

Livingston, GA

Camera Distance: 400 meters

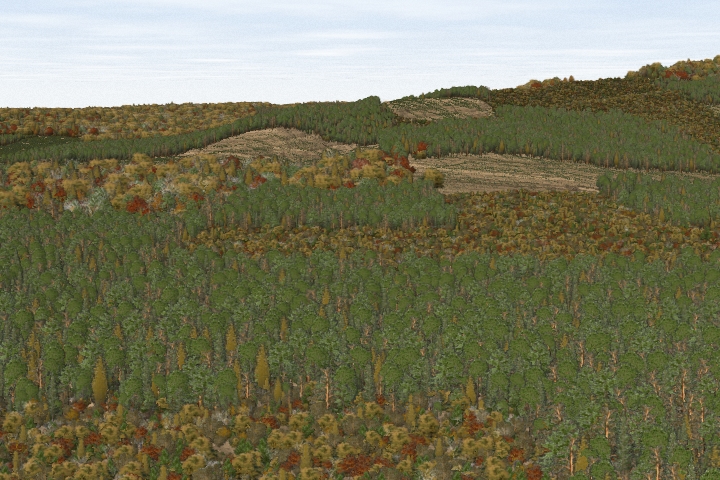

Livingston_300m_Facing North_1pm_5-7.jpg (354259 bytes)

Dimension: 720x480 jpg

 Livingston, GA

Camera Distance: 300 meters

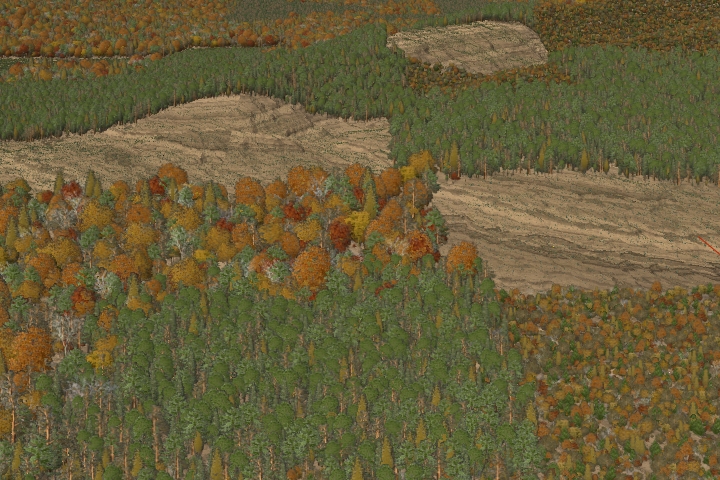

Livingston_400m_Facing North2_1pm_5-7.jpg (389380 bytes)

Dimension: 720x480 jpg

 Livingston, GA

Camera Distance: 400 meters

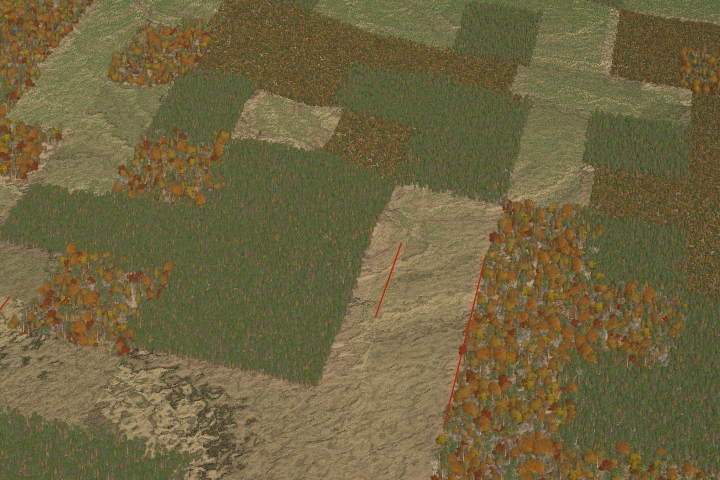

Livingston_1500m_Facing East2_1pm_5-7.jpg (369504 bytes)

Dimension: 720x480 jpg

Livingston, GA

Camera Distance: 1500 meters

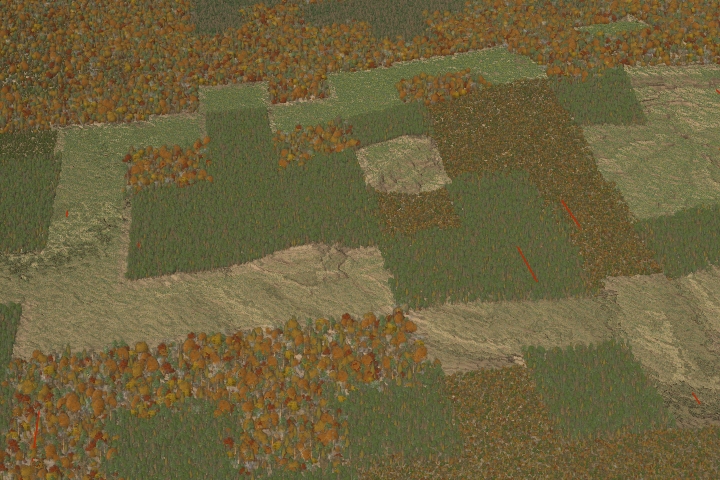

Livingston_1500m_Facing North2_1pm_5-7.jpg (374779 bytes)

Dimension: 720x480 jpg

Livingston, GA

Camera Distance: 1500 meters


Dimension: 720x480 jpg

Livingston, GA

Camera Distance: 2000 meters

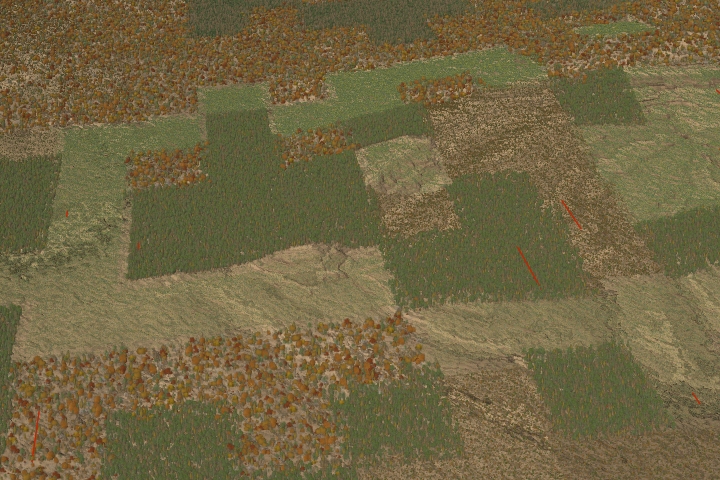

Livingston_1500m_shorter tree_facing North_1pm_5-9.jpg (383741 bytes)

Dimension: 720x480 jpg

Livingston, GA

Camera Distance: 1500 meters

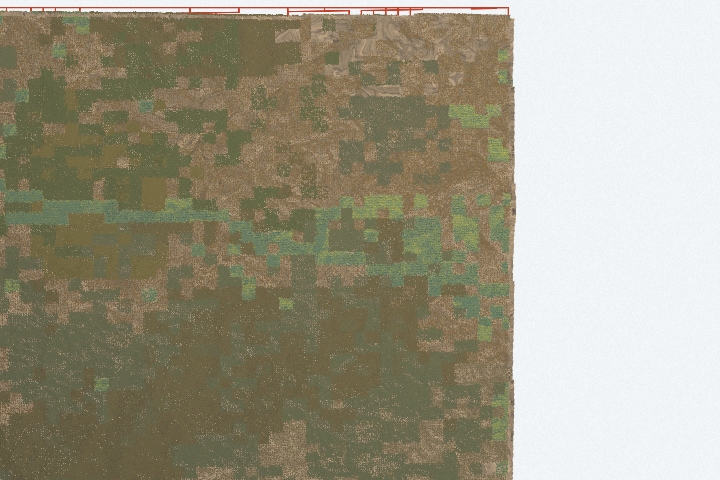

Livingston_2000m_shorter tree_overhead_1pm_5-9.jpg (295798 bytes)

Dimension: 720x480 jpg

 Livingston, GA

Camera Distance: 2000 meters

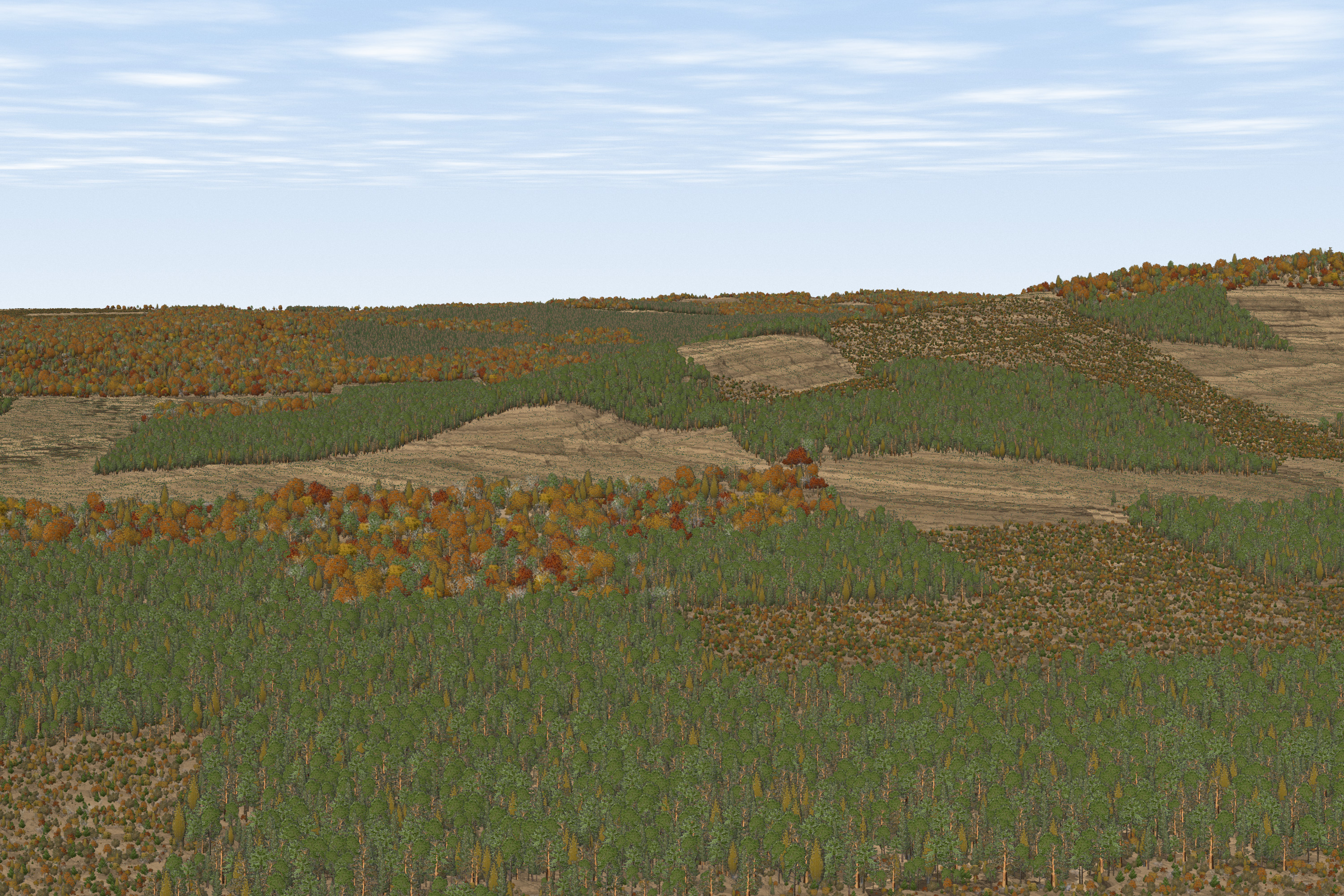

Livingston_400m_shorter trees_facing north_1pm_5-9.jpg (2761118 bytes)

Dimension: 3000x2000 jpg

 Livingston, GA

Camera Distance: 400 meters

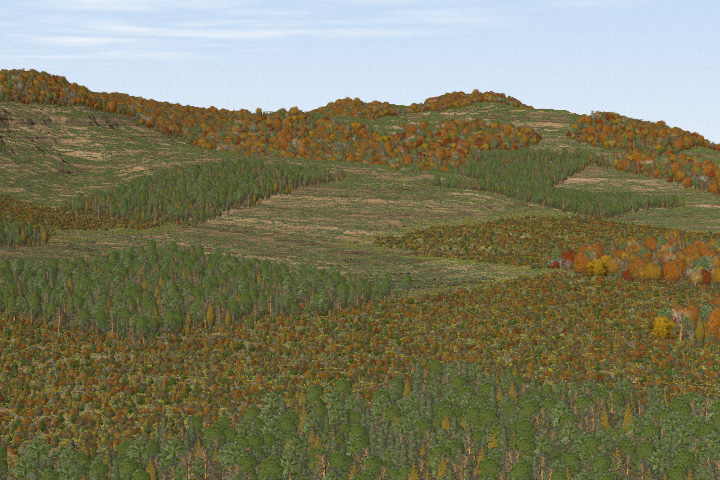

Livingston_300m_shorter trees_original place_3pm_R72_5-9.jpg (223913 bytes)

Dimension: 720x480 jpg

 Livingston, GA

Camera Distance: 300 meters

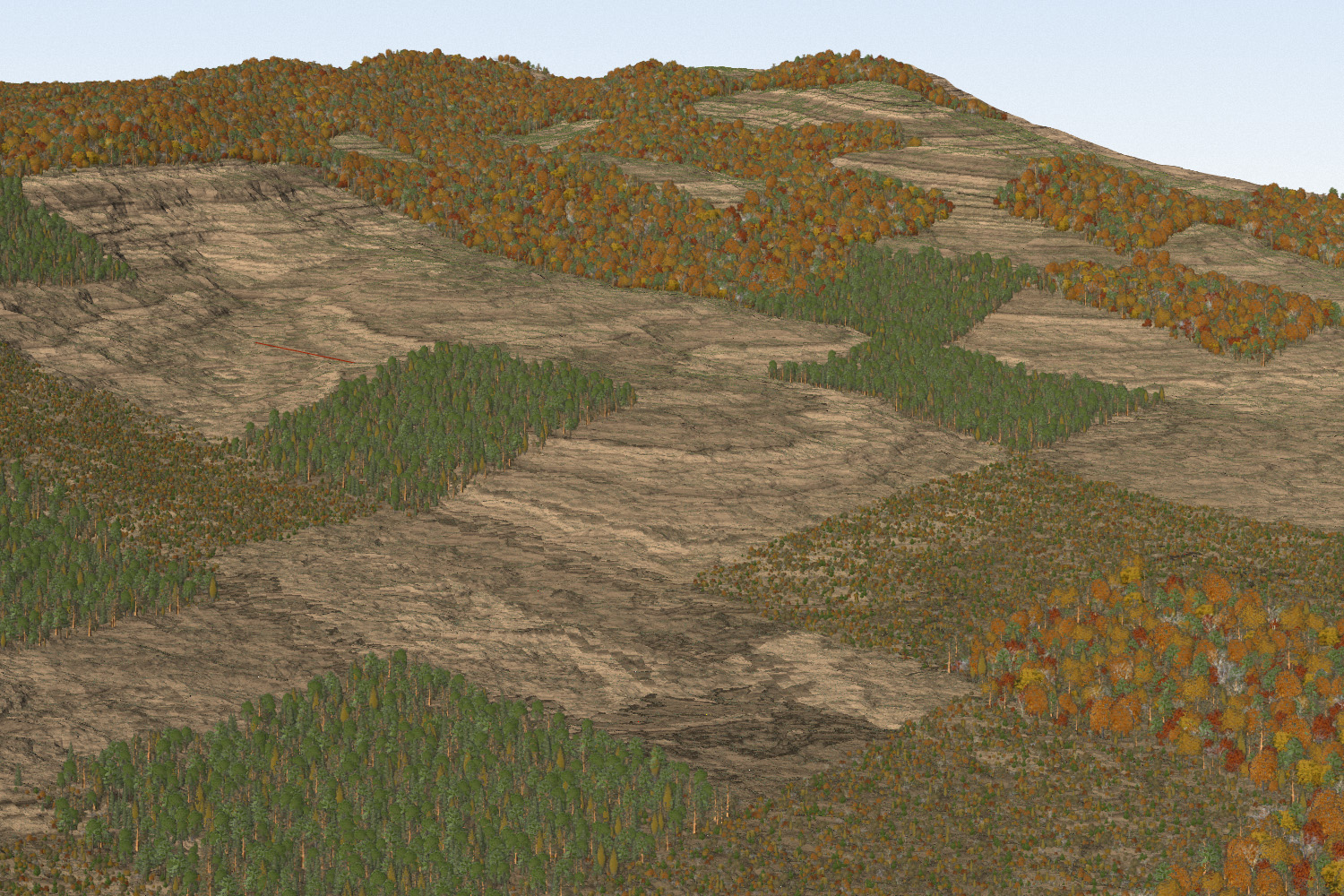

Livingston_600m_shorter trees_original place_3pm_R1500x1000_2_5-10.jpg (821963 bytes)

Dimension: 1500x1000 jpg

Livingston, GA

Camera Distance: 600 meters

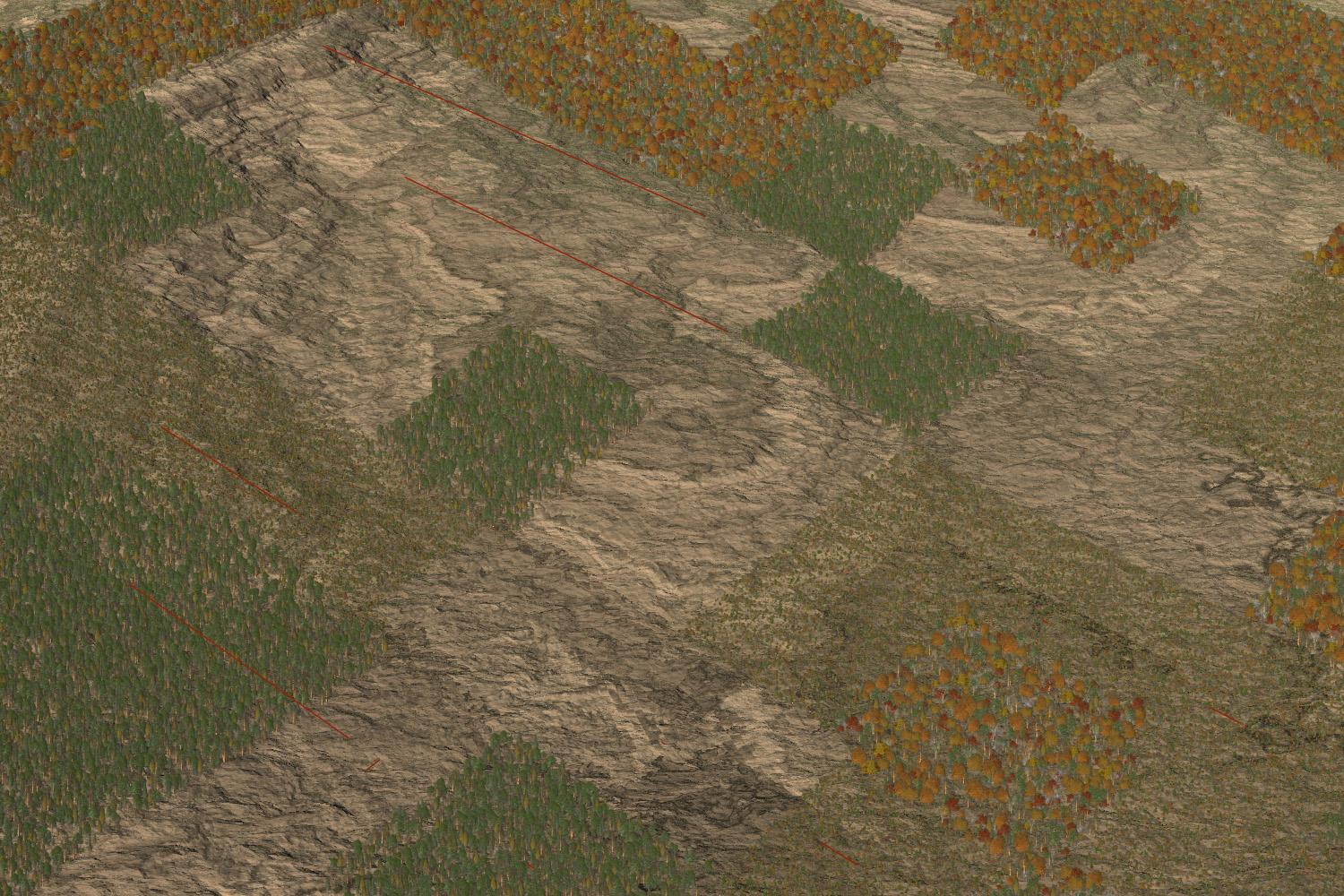

Livingston_1500m_shorter trees_original place_1blur_3pm_R1500x1000_5-10.jpg (878179 bytes)

Dimension: 1500x1000 jpg

Livingston, GA

Camera Distance: 1500 meters

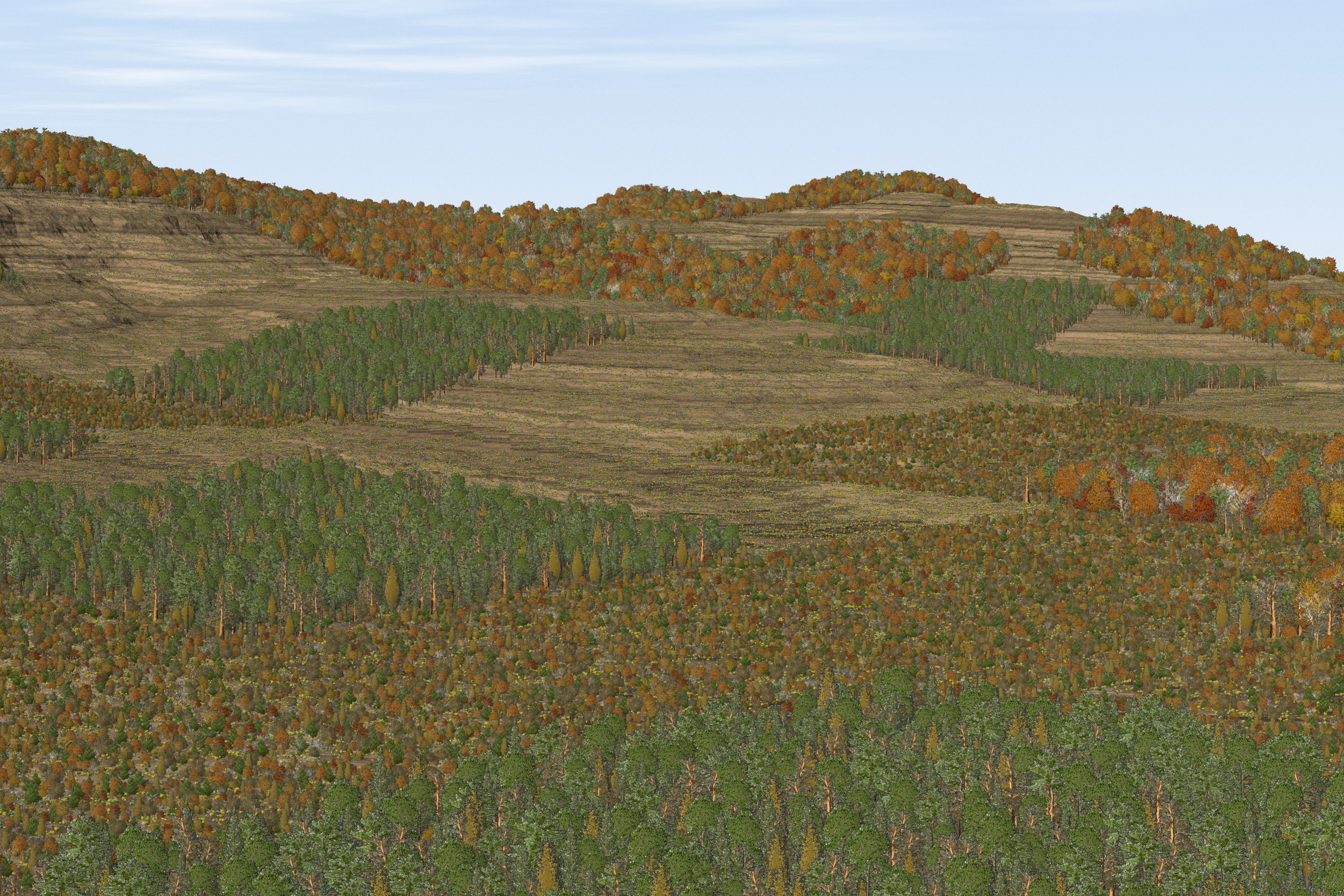

Livingston_300m_more grass_shorter trees_original place_3pm_300_5-11.jpg (3502829 bytes)

Dimension: 3000x2000 jpg

Livingston, GA

Camera Distance: 300 meters

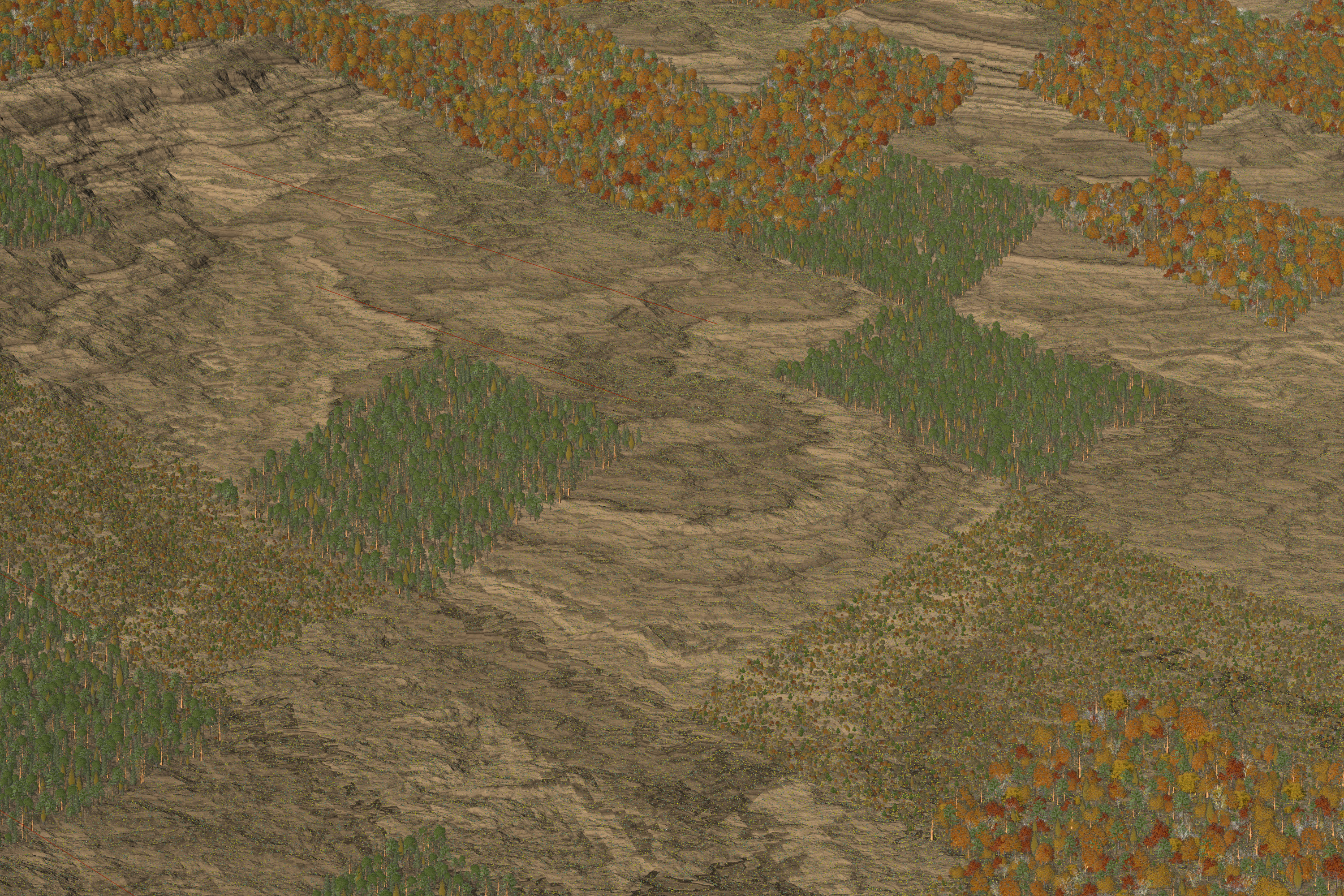

Livingston_1000m_more grass_original place_3pm_3000x2000_5-11.jpg (4186132 bytes)

Dimension: 3000x2000 jpg

Livingston, GA

Camera Distance: 1000 meters

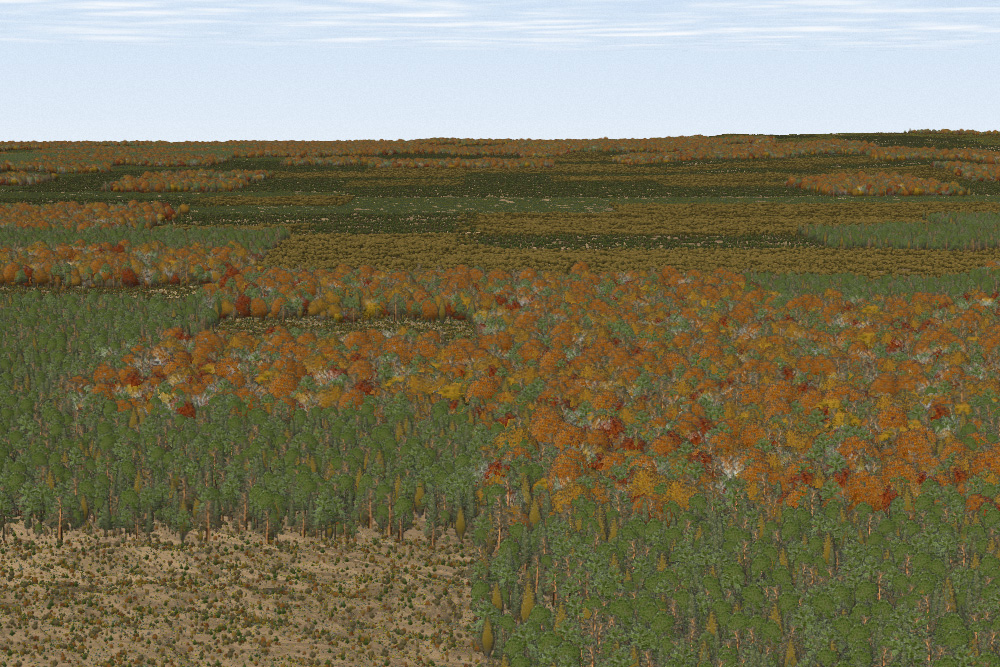

The seventh stage:  Classified ages of tree into 5 classes


Dimension: 1000x667 jpg

Livingston, GA

Camera Distance: 350 meters

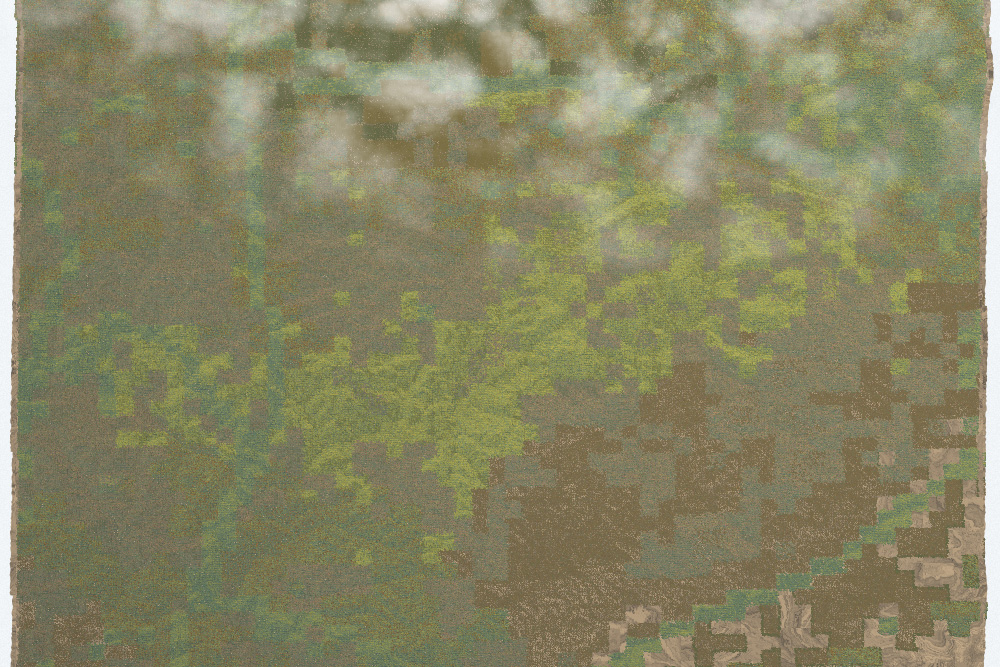

Dimension: 1000x667 jpg

Livingston, GA

Camera Distance: 14.6K meters

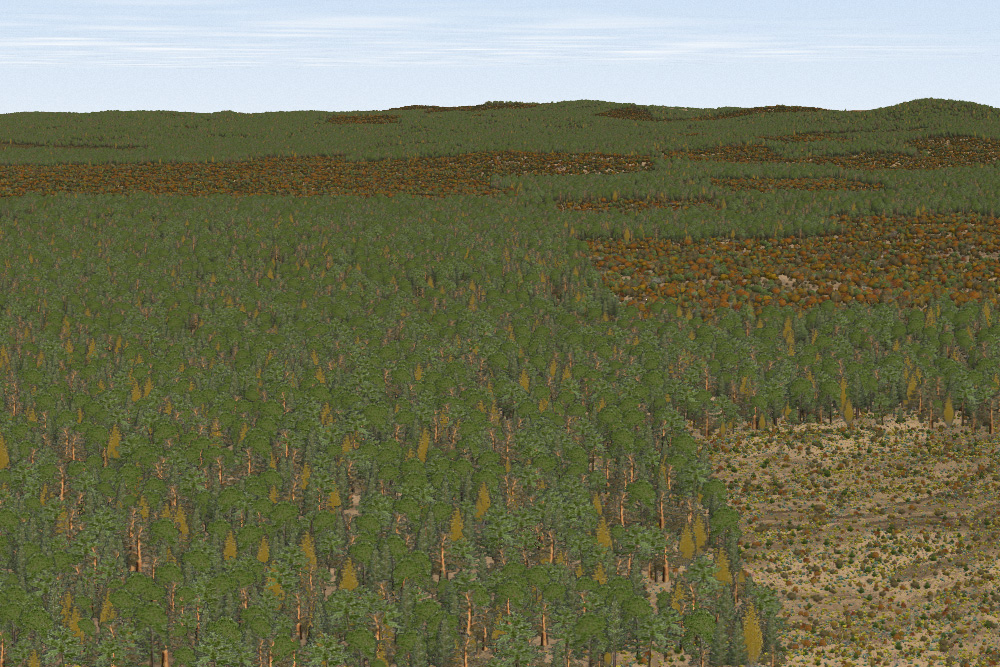

Livingston_350m_5classies_1pm_facing East_R1000x667_5-16.jpg (418031 bytes)

Dimension: 1000x667 jpg

Livingston, GA

Camera Distance: 350 meters

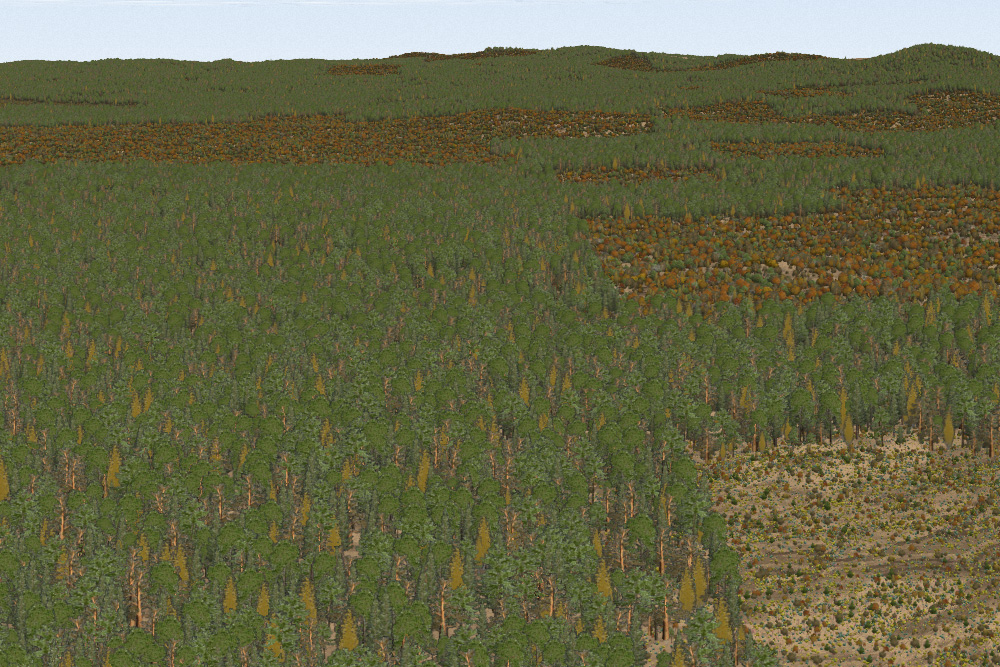

Livingston_350m_5classies_1pm_facing East_R1000x667_.9p_2_5-16.jpg (434989 bytes)

Dimension: 1000x667 jpg

Livingston, GA

Camera Distance: 350 meters

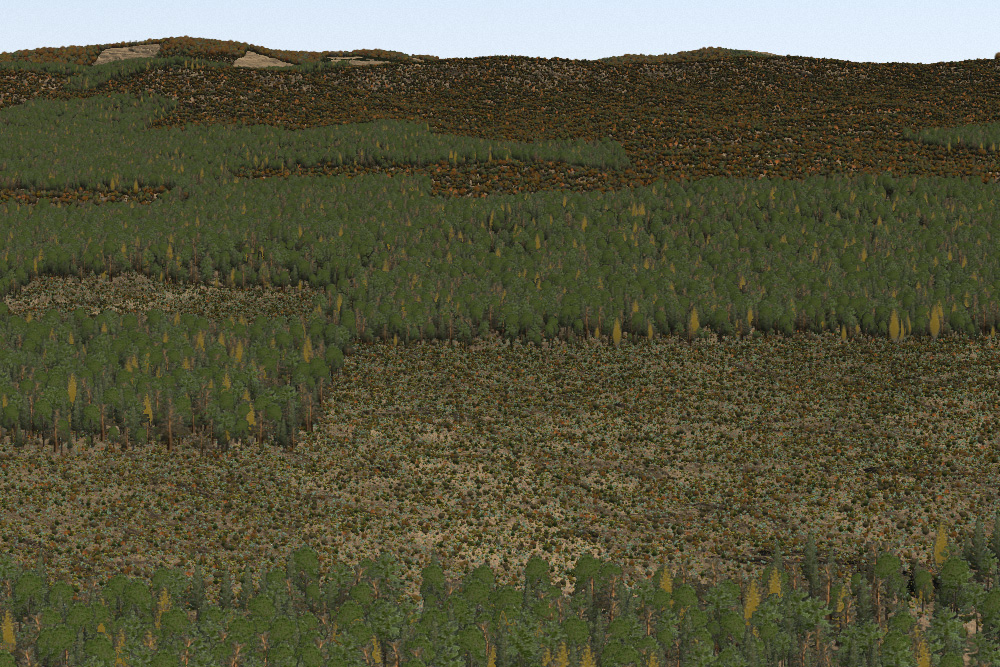

Livingston_350m_5classies_1pm_facing South_R1000x667_.9p_5-16.jpg (467297 bytes)

Dimension: 1000x667 jpg

Livingston, GA

Camera Distance: 350 meters

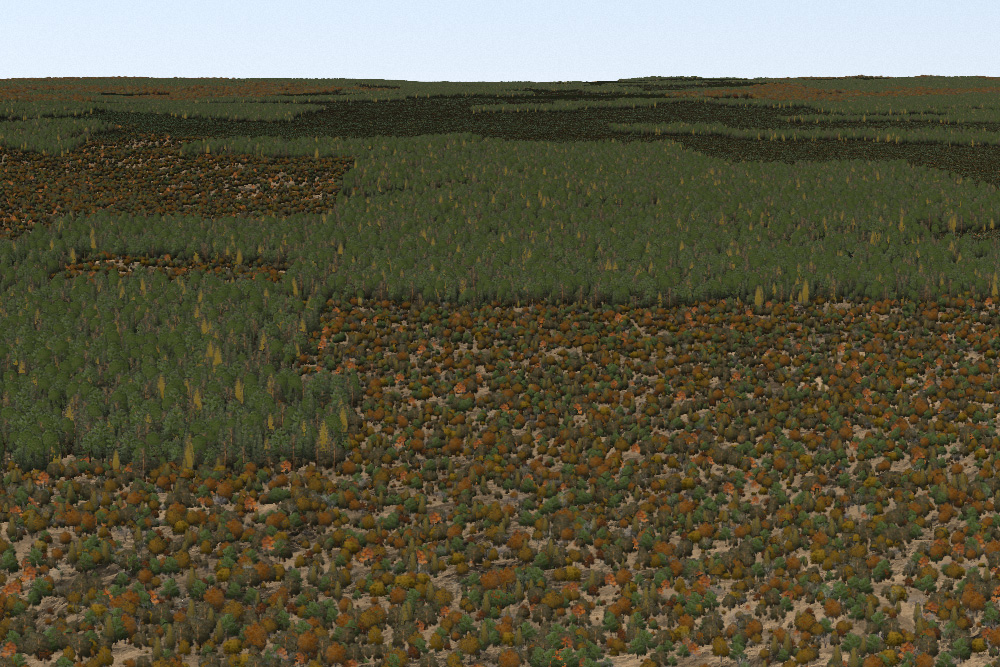

Livingston_350m_5classies_1pm_facing west_R1000x667_.9p_5-16.jpg (394668 bytes)

Dimension: 1000x667 jpg

Livingston, GA

Camera Distance: 350 meters

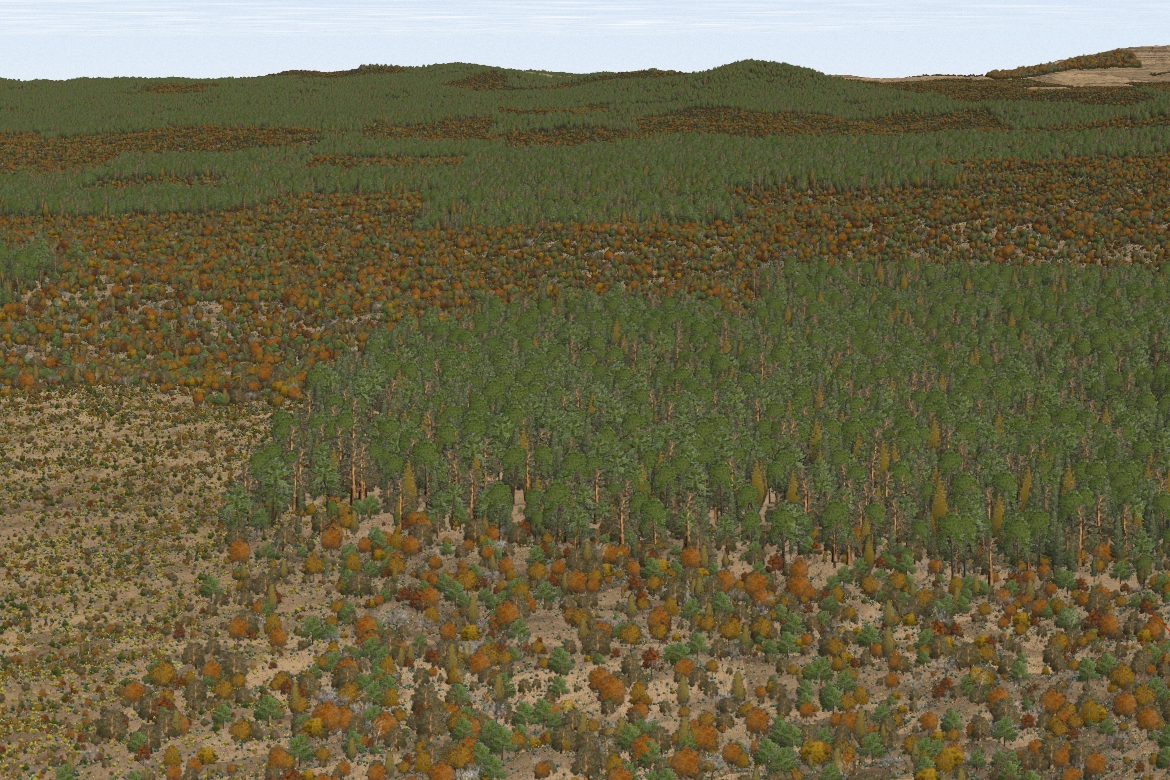

Livingston_350m_facing east_5classies_3pm_R1170x780_5-17.jpg (1025260 bytes)

Dimension: 1170x780 jpg

Livingston, GA

Camera Distance: 350 meters
